Specifications:

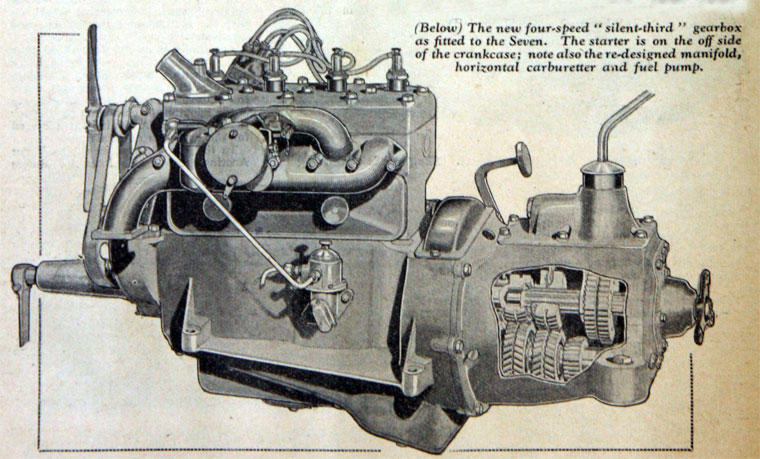

750cc Austin seven engine

Performance Figures:

Power:

17 BHP

Torque:



Max BMEP:







Engine Specifications:

General Data:

The 750 was built by Austin From 1923 to 1938 and had aluminium crank case, cast iron cylinder block and cast iron cylinder head and a three bearing crank.

Bore

56mm (2.2”)

Stroke

76.2mm (3.00”)

Firing Order

1-3-4-2

Crankcase Ventilation

Filler cap breather

Engine Mounting



Clutch

Dry Single plate

Carburetor

Zenith

Fuel Pump



Air Cleaner



Oil Filter



Water Pump

Thermosiphon

Fan

Two blade

Electrics

6v Positive earth

Alternator / Dynamo

Dynamo Lucas 6v

Starter Motor



Distributor



Drive



Ignition Advance



Overall Dimensions:



Length (Front to Back)



Height



Width



Dry Weight



750cc Austin

Austin seven engine
